Solid Fuels, Agro Waste, Biomass Fired Boilers

High-efficiency AFBC, IR-CFBC, and grate boilers enabling sustainable steam and power from diverse solid fuels

AFBC (atmospheric fluidised bed combustion) boilers ensure efficient fluidisation of low-grade fuels and high alkali biomass. IR-CFBC (internal recirculation - circulating fluidised bed combustion) boilers allow for superior emission control, lower unburnt carbon levels in ash, and fuel flexibility, while grate boilers handle high-moisture and low GCV (gross calorific value) biomass fuels effectively.

These designs, often incorporating machine-welded membrane panels and multi-stage superheaters, optimise thermal efficiency, ensure stable operation, and minimise emissions. They ensure improved profitability by maximising the use of in-plant or locally available agro-waste for clean energy generation. Designed for fuel flexibility and high performance, our boilers enable industries to reduce carbon footprint, eliminate ash disposal issues, lower fuel costs, and maintain consistent energy output, aligning with sustainability and energy independence goals.

Our products

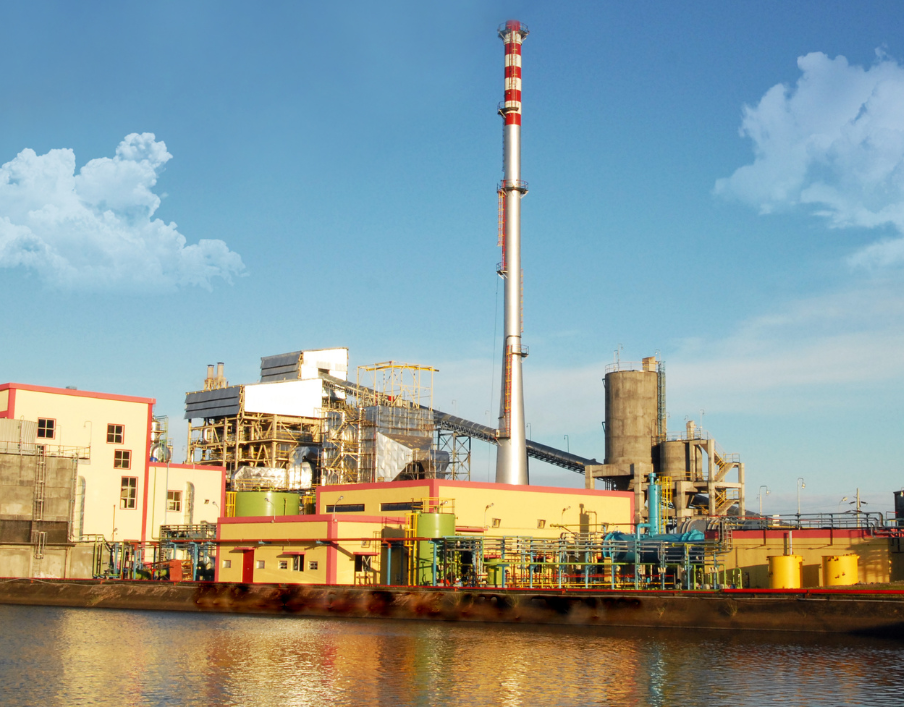

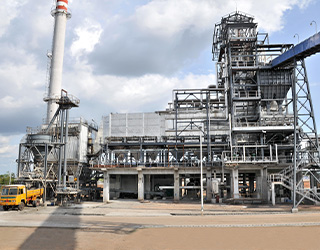

Atmospheric Fluidised Bed Combustion (AFBC) Boilers

Utilises bubbling fluidised bed combustion to efficiently burn fuels with high ash, metal content and high alkali biomasses


Capacity Range Up to 400 TPH
Operating Pressure Up to 140 kg/cm²(g)
Temperature Up to 560°C
Product Efficiency 89% on NCV
Discover more

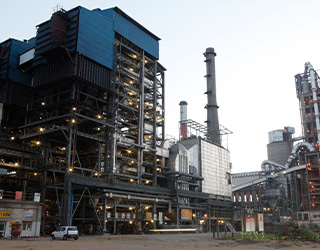

Internal Recirculation Circulating Fluidised Bed (IR-CFBC) Boilers

Features internal recirculation circulating fluidised bed design for higher combustion efficiency, lower emissions and lower unburnt carbon in ash


Capacity Range Up to 1,000 TPH
Operating Pressure Up to 200 kg/cm²(g)
Temperature Up to 565°C
Product Efficiency 91% on NCV
Discover more

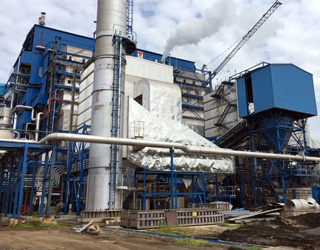

Travelling Grate Boilers

These boilers with travelling grate technology enhance combustion efficiency and fuel economy


Capacity Range Up to 300 TPH
Operating Pressure Up to 160 kg/cm²(g)
Temperature Up to 560°C
Product Efficiency 90% on NCV
Discover more

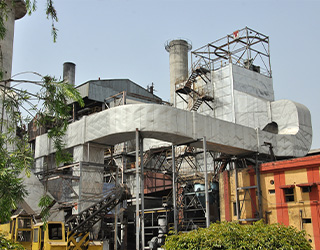

Pinhole Grate Boilers

Ensures optimised combustion of biomass fuels with low ash content and high moisture


Capacity Range Up to 300 TPH
Operating Pressure Up to 160 kg/cm²(g)
Temperature Up to 560°C
Product Efficiency 90% on NCV
Discover more

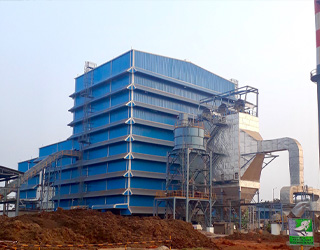

Reciprocating Grate Boilers

Ideal for combustion of challenging fuels, including those with high moisture, low calorific value, and inconsistent particle sizes


Capacity Range Up to 300 TPH
Operating Pressure Up to 160 kg/cm²(g)
Temperature Up to 560°C
Product Efficiency 90% on NCV
Discover more

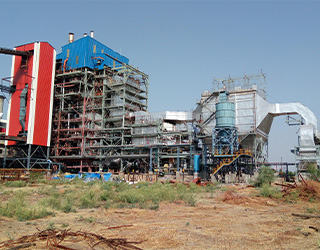

Dumping Grate Boilers

The stationary grate design and intermittent ash discharge contribute to simplified operation and reduced maintenance


Capacity Range Up to 300 TPH
Operating Pressure Up to 160 kg/cm²(g)
Temperature Up to 560°C
Product Efficiency 90% on NCV
Discover more
