Up to 200 TPH
WHRB in Coke Calcination Plant

WHRB in Coke Calcination Plant

Pioneering waste heat recovery solutions for coke calcination plants, converting wasted thermal energy into valuable resources

Submit your enquiry
Select an option

Coke calcination involves high-temperature treatment of petroleum coke, emitting substantial waste heat. TBWES WHRBs installed in the flue gas stream recover this heat to generate steam.

The steam supports power generation or plant operations, enhancing energy recovery and reducing environmental impact. This results in lower operational costs and a cleaner, more sustainable calcination process.

Technical data

  • Product capacity / performance range -

    • Capacity: Up to 200 TPH

    • Pressure: Up to 130 Kg/cm2(g)

    • Temperature: Up to 540°C

  • Heat sources - Flue gases from coke calcination kilns

  • Compliance or standards followed – ASME / IBR / TRCU / PED

  • Flexibility or customisation options – The product can be customised based on customer needs or scale

Product features

Integrated soot blowing system
Ensures clean heat transfer surfaces and efficient operation
Water wall panel construction
Robust design in first and second pass for effective heat absorption
Modular site / port assembly
Facilitates faster, efficient installation with modular construction
Horizontal and vertical configurations
Available in both orientations to suit site requirements
Up to 540°C 10 to 70 kg/cm²(g)
Up to 200 TPH
Waste Heat Recovery Units (WHRU)

Waste Heat Recovery Units (WHRU)

Engineered to efficiently recover waste heat from the exhaust of gas turbines using heating media such as a water-glycol mixture, thermal oil and water depending on the application

Submit your enquiry
Select an option

TBWES WHRU are designed to install on offshore platforms, floating vessels such as FPSOs, FPUs, FLNGs etc. and Onshore terminals including oil & gas and other process plants.

A unique offering is our specially designed integral bypass system configuration, which allows for greater flexibility and performance. These units feature a compact, space-saving design with a small footprint and are often built as removable-type systems, preferred for ease of maintenance. Depending on the customer requirement, units can be configured vertically or horizontally. TBWES WHRUs are registered with major oil and gas companies globally.TBWES WHRUs are operating successfully across a wide range of onshore as well as offshore locations including FPSOs around the world, including Sakhalin Island, Asian Offshore Waters, North Sea, African Offshore, The Middle East Offshore and the Americas.

Technical data

  • Product capacity / performance range –
    • Capacities: Up to 135 MW
  • Fuel type or energy sources –
    • Energy source: Gas turbine exhaust gas
  • Compliance or standards followed – ASME, API, TRCU, PED, NORSOK, NR-13, DOSH, ARH
  • Design –
    • Supported heating media: Water, water-glycol mixture, thermal oil, regen gas
    • Integral bypass and external bypass design
    • Removable bundle design option
    • Vertical gas flow and horizontal gas flow
    • Optimised gas side pressure loss
    • Online WHRU isolation
    • Shop-modularised or site-assembled
  • Flexibility or customisation options
    The product can be customised based on customer requirements or scale
  • Other technical information
    • In-house thermal and mechanical design
    • In-house manufacturing with finning capability
    • In-house assembly / modularisation capability

    Thermax
    Manufactured as per technology developed by Thermax

Product features

Removable tube bundle on demand
Ensures easy maintenance, a key feature that simplifies upkeep and minimizes downtime. This design ensures that the system can be serviced efficiently, whenever needed.
Flexible assembly & delivery
Units can be shop or site assembled to best suit transportation logistics and minimise on-site requirements, simplifying installation and reducing project complexity
Space-saving design
Our designs prioritise a compact, space-saving footprint, optimising facility layout and maximising valuable operational space
Integral bypass facility
Units feature an integral bypass facility that enables efficient, flexible operation and enhances control and adaptability to varying demands
Online WHRU isolation
Enables maintenance or inspection without disrupting the entire system, ensuring continuous operation and minimal downtime
Optimised gas side pressure loss
Our designs ensure optimum gas side pressure loss, maximising efficiency and minimising energy consumption, thereby contributing to a more cost-effective and environmentally friendly operation
Up to 540°C 10 to 70 kg/cm²(g)
Up to 200 TPH
Coal Gasification Plant

WHRB in Coal Gasification Plant

WHRBs extract waste heat from hot syngas in coal gasification units to produce steam efficiently

Submit your enquiry
Select an option

We are pioneers in waste heat recovery for coke calcination plants, developing innovative solutions that capture and convert wasted thermal energy into valuable resources.

Coal gasification involves converting coal into syngas at high temperatures. The process emits high-temperature gases, and WHRBs are installed to capture this heat for steam generation. This steam is used for power generation or plant operations, significantly improving energy utilisation, reducing emissions, and enhancing overall process efficiency in integrated gasification combined cycle (IGCC) plants.

Technical data

  • Product capacity / performance range -

    • Capacity: Up to 200 TPH

    • Pressure: Up to 130 Kg/cm2(g)

    • Temperature: Up to 540°C

  • Energy Sources - Heat source: Hot syngas or raw gas cooling stream

  • Compliance or standards followed – ASME / IBR / TRCU / PED

  • Flexibility or customisation options – The product can be customised based on customer needs or scale

Product features

Modular site / port assembly
Facilitates faster, efficient installation with modular construction
Horizontal configuration & natural circulation design
Ensures reliable operation with simplified flow and maintenance
Water wall panel construction
Enhances heat absorption and protects boiler structure from high temperatures
Hammering arrangement
Enables effective cleaning of heat transfer surfaces for sustained efficiency
Up to 540°C 10 to 70 kg/cm²(g)
Up to 200 TPH
WHRB in Coke Oven/ Coke Dry Quenching Plant

WHRB in Coke Oven/ Coke Dry Quenching Plant

WHRB recovers heat from hot coke oven gases, improving energy efficiency and steam generation

Submit your enquiry
Select an option

TBWES offers waste heat recovery boilers for non-recovery coke oven plant and recovery type coke dry quenching plant applications

The WHRBs capture thermal energy from high-temperature coke or quenching gases. This recovered heat is used to produce steam for power generation or plant utilities. Our WHRBs enhance energy efficiency, reduce emissions, and lower fuel costs, making them a critical component in sustainable coke production processes.

Technical data

  • Product capacity / performance range -

    • Capacity: Up to 200 TPH (for coke dry quenching)

    • Pressure: Up to 130 Kg/cm2 (g)

    • Temperature: Up to 540°C

  • Energy sources - Heat source: Flue gases from red-hot coke during the dry quenching process

  • Compliance or standards followed – ASME / IBR / TRCU / PED

  • Flexibility or customisation options – The product can be customised based on customer needs or scale

  • Design –

    • Horizontal and vertical designs, tailored to space and process requirements

    • Site / port assembly with modularised constructions

  • Other technical information
    Boiler-Turbine-Generator (BTG) package can be offered on a case-by-case basis

  • Applications:

    • Non-recovery coke oven plant

    • Recovery-type coke dry quenching plant

Product features

Integrated soot blowing system
Ensures effective removal of soot deposits, maintaining heat transfer efficiency and uninterrupted operation
Modularised site or port assembly design
Allows for faster erection, ease of transportation, and reduced installation time at the project site
Natural or Forced Circulation Design
Ensures optimal adaptability to process parameters and improving reliability in coke dry quenching operations.
Water Wall Panel Construction in the 1st / 2nd Passes
Provide robust heat absorption, improved thermal efficiency, and enhanced structural integrity.
Gas-tight Membrane Panel Construction and Single-Shaft Design
Engineered to handle highly abrasive dust, ensuring the system's longevity and integrity.
Compact and Efficient Heat Exchange
Combination of bare tube and extended surface (WSG or helical fins) design of the evaporator and economizer creates a compact unit without compromising heat transfer efficiency.
Up to 540°C 10 to 70 kg/cm²(g)
Up to 200 TPH

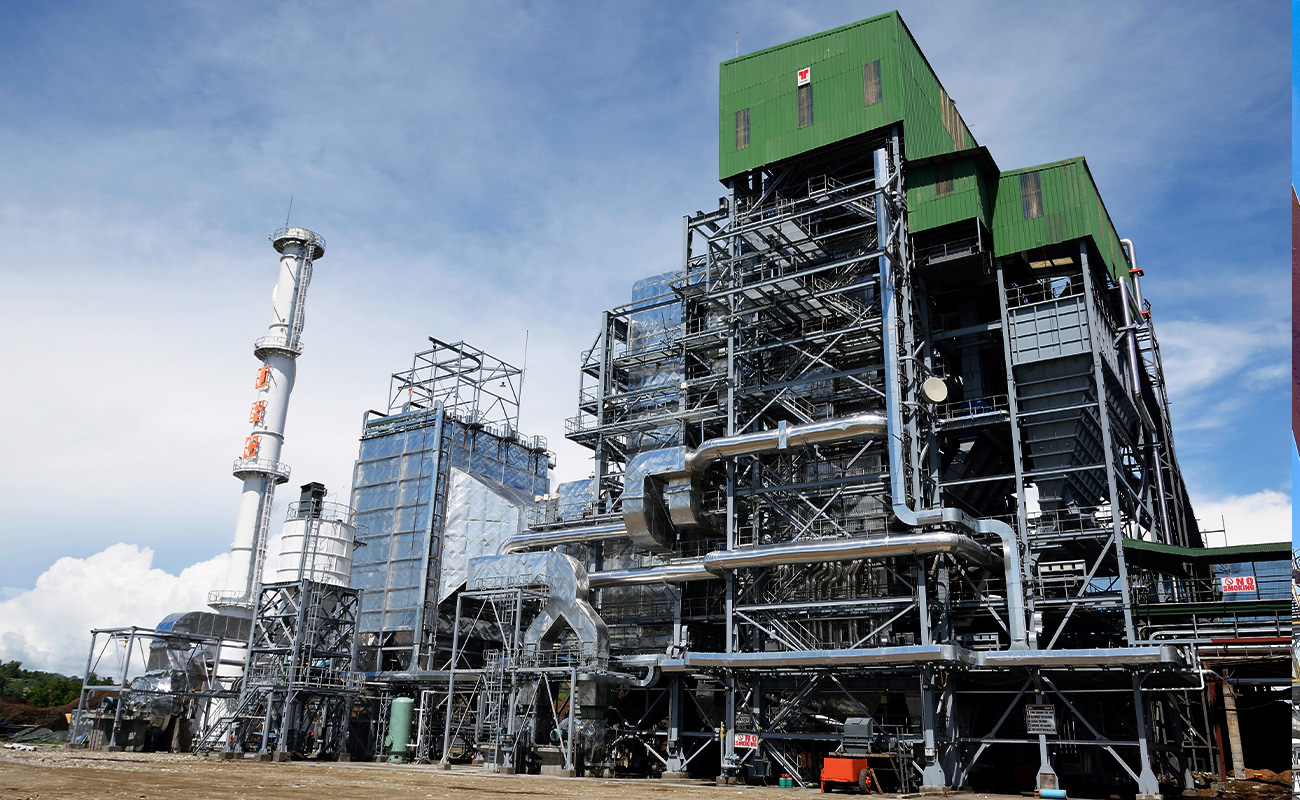

Spent Wash Fired Boilers

Spent Wash Fired Boilers

An effective spent wash incineration solution helping distilleries meet steam, captive power, and economical ZLD (zero liquid discharge) compliance

Submit your enquiry
Select an option

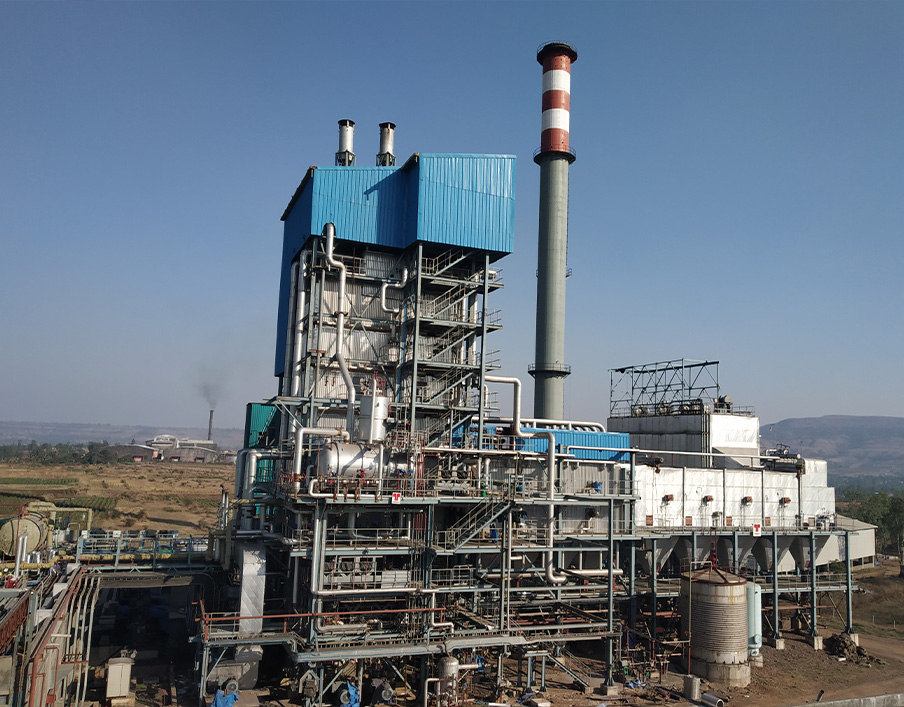

TBWES spent wash-fired boilers convert distillery spent wash into valuable energy, reducing waste and operating costs effectively.

Engineered to handle varying spent wash concentrations, ensuring reliable and sustainable operations for both large-scale operations and micro distilleries (under 30 KLPD). Their robust, efficient three-pass design maximises thermal performance, making them an ideal solution to meet zero liquid discharge (ZLD) norms. Beyond environmental compliance, these boilers offer significant commercial value; the potash-rich fly ash generated provides an additional revenue stream.

Technical data

  • Product capacity / performance range –

    • Capacity range: Up to 200 TPH

    • Pressure: Up to 125 kg/cm²(g)

    • Temperature: Up to 540°C

  • Fuel type or energy sources –

    • Main fuel: Spent wash

    • Supporting fuels: Coal, bagasse, rice husk

  • Compliance or standards followed – ASME / IBR / PED

  • Design –

    • Site-assembled and partial modularisation options

    • Single-drum configuration

    • Combustion technology: Atmospheric fluidised bed/ grate

    • Effective online cleaning system

    • Three-pass design (Pioneered by Thermax)

    • Specially designed spent wash spray system

  • Flexibility or customisation options – Can be offered as:

    • Boiler island

    • Boiler-turbine-generator (BTG) package

    • Turnkey power plant (EPC)

  • Other technical information – Thermax’s spent wash (vinasse) fired boiler technology is a result of extensive R&D and successful trials. We were the first to introduce the concept of spent wash incineration, setting an industry benchmark

Product features

Efficient firing of low-solid spent wash
Capable of effectively firing spent wash with solids below 48%, allowing flexibility in handling lower concentration fuel streams
Pioneers of three-pass boiler design
First in the industry to introduce the innovative three-pass design, enhancing heat transfer efficiency and reducing fuel consumption
Cost-effective design for micro distilleries
Features a specially engineered, cost-effective design tailored to meet the specific needs and capacity requirements of micro-distilleries producing less than 30 KLPD
Exceptional efficiency
Achieves up to 80% efficiency on NCV
Optimal combustion and heat recovery
Designed for maximum heat recovery, the system ensures complete combustion through adequate residence time
Compliance with zero liquid discharge (ZLD)
Boiler systems designed to meet ZLD statutory requirements, supporting sustainable and environment-friendly operations
Uninterrupted boiler operation
Designed for continuous operation without frequent cleaning requirements, ensuring reliable performance as per process demands, maximising uptime and productivity
Revenue from potash-rich fly ash
The unique combustion process generates potash-rich fly ash, which serves as a valuable by-product for agricultural use, creating an additional revenue stream and eliminating a waste disposal challenge
Up to 80% on NCV Up to 540 °C Up to 125 kg/cm²(g)
