Technical data

• Product capacity / performance range –

  • Capacity range: Up to 125 TPH

  • Pressure: 15 to 70 kg/cm²(g)

  • Temperature: Up to 430°C

• Fuel type or energy sources – Non-recyclable solid waste (NRSW), industrial scheduled waste, sludge

• Compliance or standards followed – ASME, IBR, EN, PED, PESR

• Design –

• Single-drum and bi-drum options

  • Multi-pass design

  • Step grate combustion technology

  • Combustion system: Reciprocating grate technology with special refractory

  • Vertical & horizontal models

• Flexibility or customisation options – The product can be customised based on customer needs or scale

• Other technical information –

  • Specially designed combustion & feeding system to accommodate a wide range of net calorific values

  • The furnace is sized for complete combustion, carryovers, and also to ensure proper residence time of
    2 sec at >850°C for complete combustion of fuel and to decompose the dioxin/furans

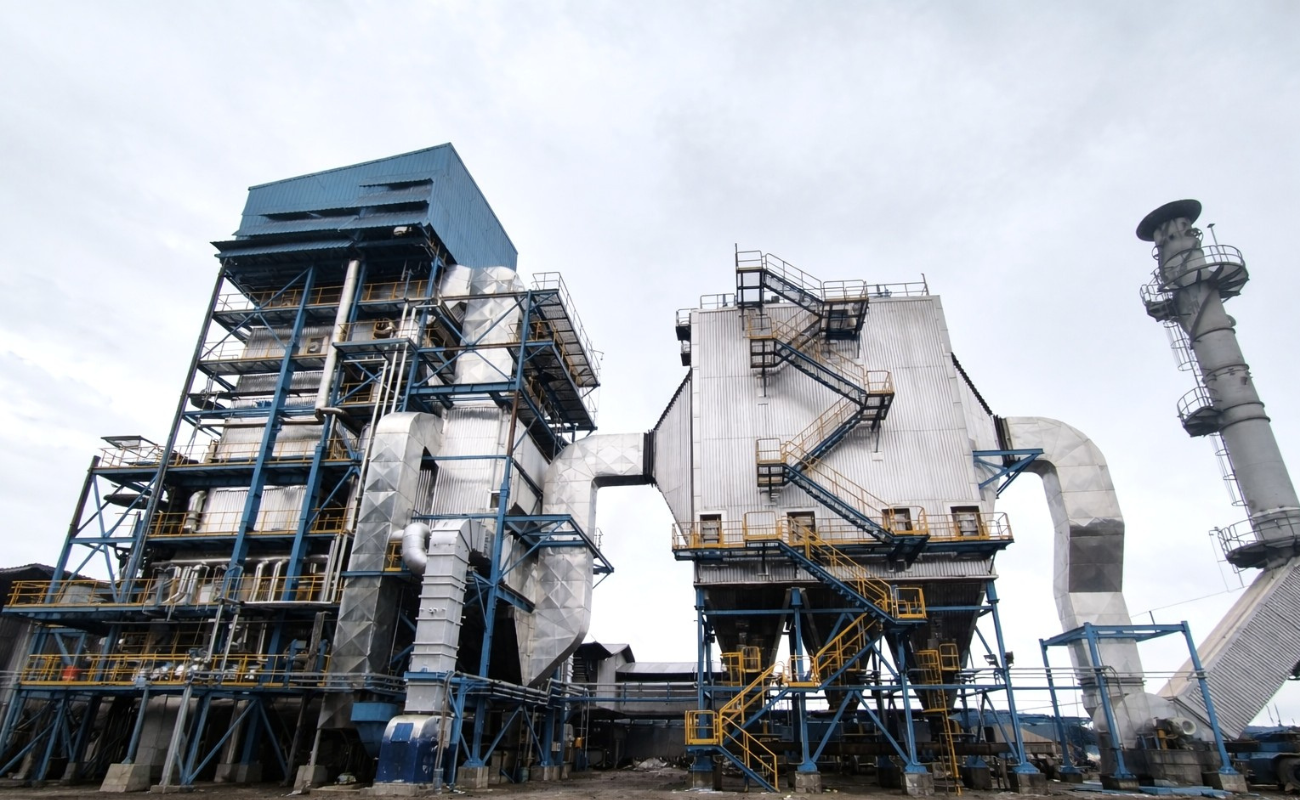

Technical data

• Product capacity / performance range –

  • Capacity: Up to 1,000 tonnes per day

  • Operating pressure: 15 to 70 kg/cm²(g)

  • Temperature: Up to 450 °C

• Fuel type or energy sources – Municipal solid waste (MSW)

• Compliance or standards followed – ASME / IBR / EN / PED / PESR

• Design –

  • Kanadevia Inova Steinmüller's forward-acting reciprocating grate technology

  • Multi-pass design

  • Vertical & horizontal models

• Flexibility or customisation options – The product can be customised based on customer needs or scale

• Other technical information –

  • The air-cooled reciprocating grate offers high versatility by accommodating broad waste variations, from calorific value to size

  • Modular construction enables effortless grate bar replacement in new and existing installations

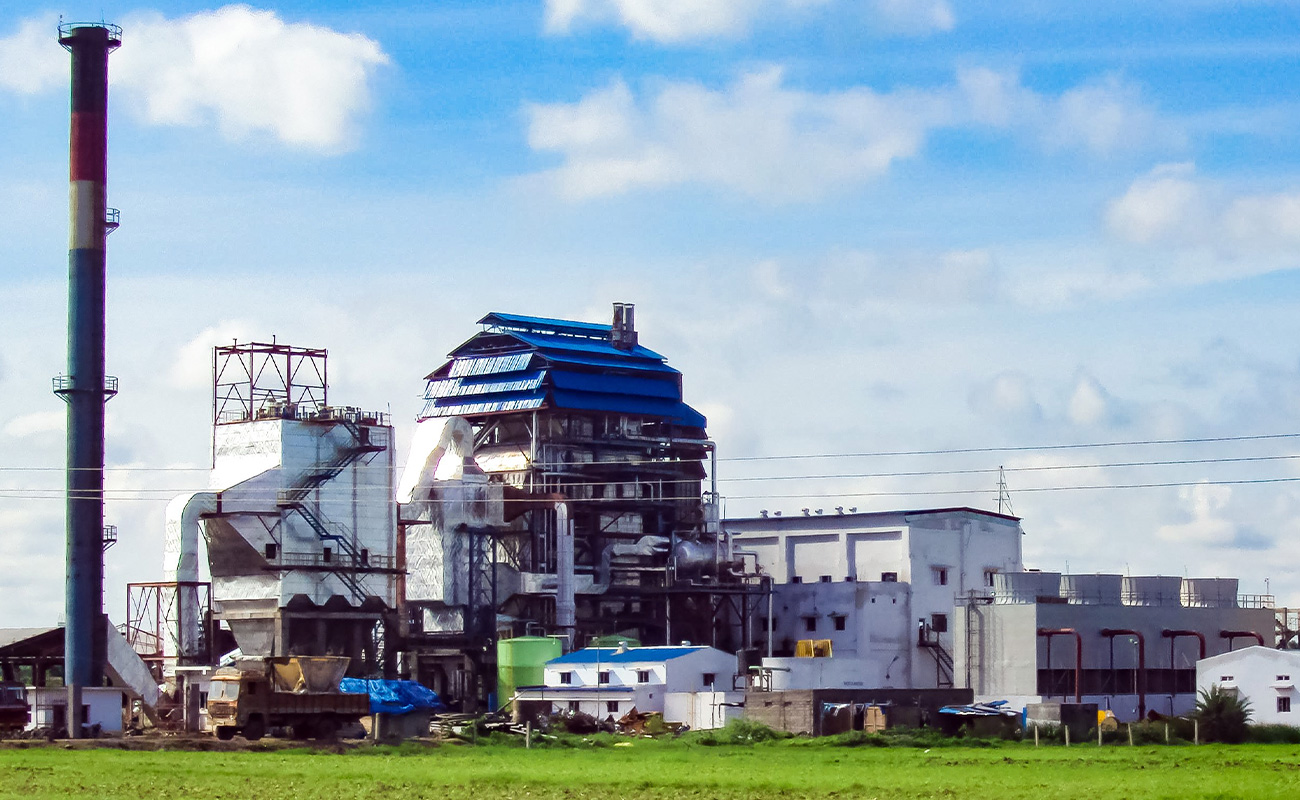

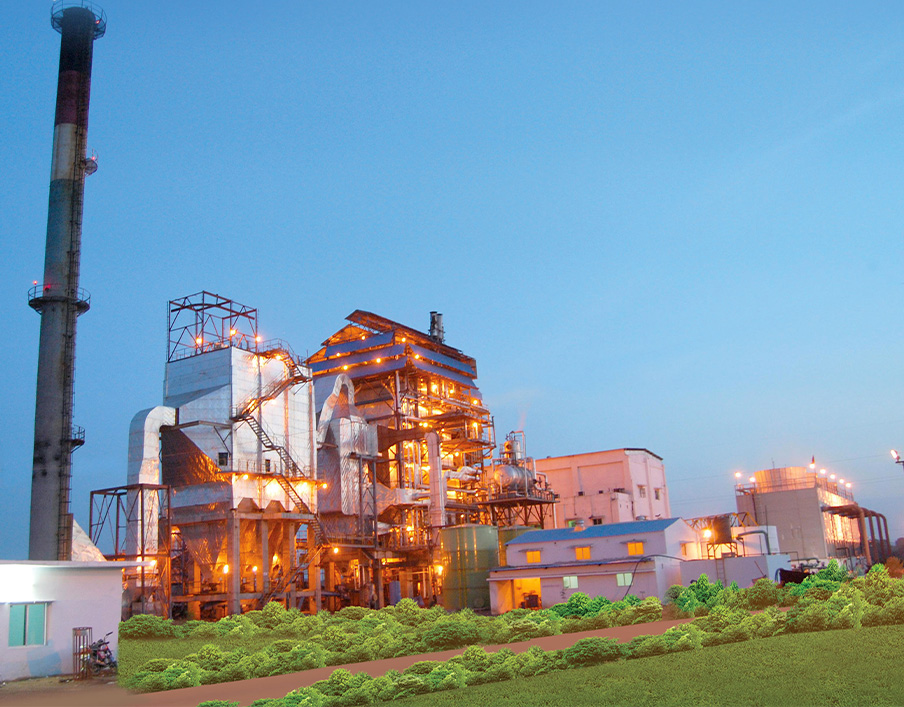

Technical data

• Product capacity / performance range –

  • Capacity range: Up to 300 TPH

  • Pressure: Up to 70 kg/cm²(g)

  • Temperature: Up to 495°C depending on fuel mix

• Fuel type – Refuse derived fuel (RDF)

• Compliance or standards followed – ASME / IBR / EN / PED / PESR

• Design –

  • Single-drum & bi-drum options

  • Single-pass & multi-pass designs

  • Inclined reciprocating grate combustion technology

  • Vertical & horizontal models

• Flexibility or customisation options – The product can be customised based on customer needs or scale

• Other technical information – The furnace is sized for complete combustion, carryovers and also to ensure proper residence time of 2 sec at >850°C for complete combustion of fuel and to decompose the dioxin/furans

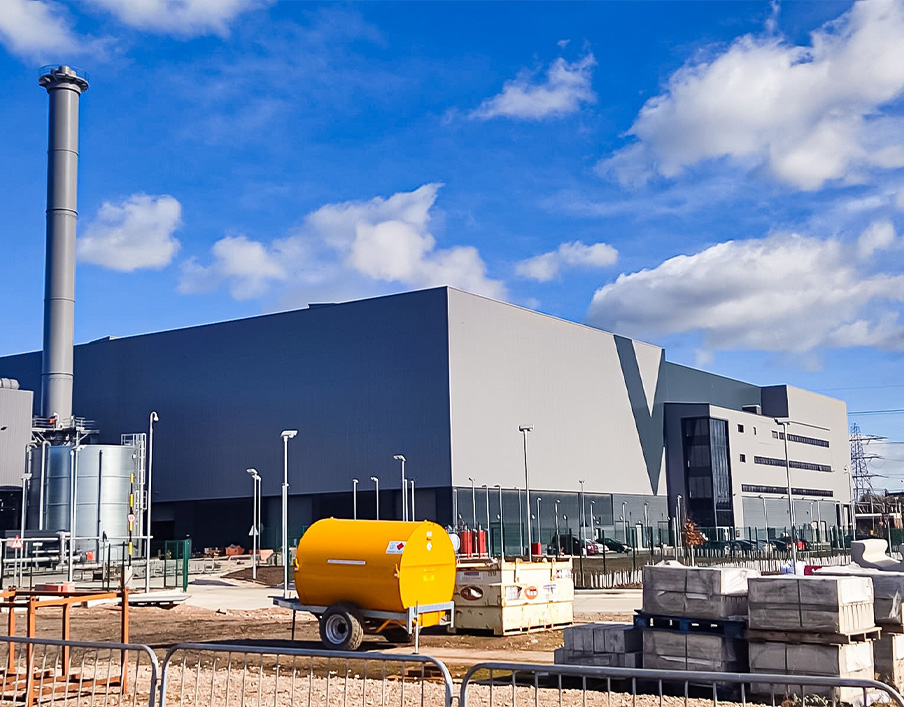

Technical data

• Product capacity / performance range –

  • Capacity range: Up to 300 TPH

  • Pressure: 15 to 70 kg/cm²(g)

  • Temperature: Up to 480°C

• Compliance or standards followed – ASME, IBR, EN (CE) – PED, EN (UKCA) PESR

• Design –

  • Multi-pass heat recovery boiler downstream of kilns, gasifiers or stokers with once-through or multi-pass designs

  • Interface engineering between stokers/gasifiers/kilns and waste heat boilers

  • Interface engineering for vertical and horizontal boiler arrangements

• Flexibility or customisation options –
  The product can be customised based on customer needs or scale

• Other technical information
  Specially designed combustion & feeding system to accommodate a wide range of net calorific values

Manufactured as per the technology developed by Thermax

Technical data

• Product capacity / performance range –

  • Capacity range: Up to 300 TPH

  • Pressure: Up to 70 kg/cm²(g)

  • Temperature: Up to 495°C, depending on fuel mix

• Fuel type or energy sources – Non-recyclable solid waste (NRSW), refuse-derived fuel (RDF), agricultural waste, biofuels, biomass and other available fuels

• Compliance or standards followed – ASME / IBR / EN / PED / PESR

• Design –

• Single-drum and bi-drum options

  • Single-pass & multi-pass designs

  • I-step grate combustion technology

  • Vertical & horizontal models

• Flexibility or customisation options – The product can be customised based on customer needs or scale

• Other technical information –

  • Specially designed combustion and feeding system to accommodate a wide range of net calorific values, ranging from 1400-4,000 kcal/kg, moisture content up to 60%, with irregular fuel sizes ranging from 50 to 1000 mm
  • Integrated flue gas treatment system with scrubbers, bag filters and ESPs as applicable
