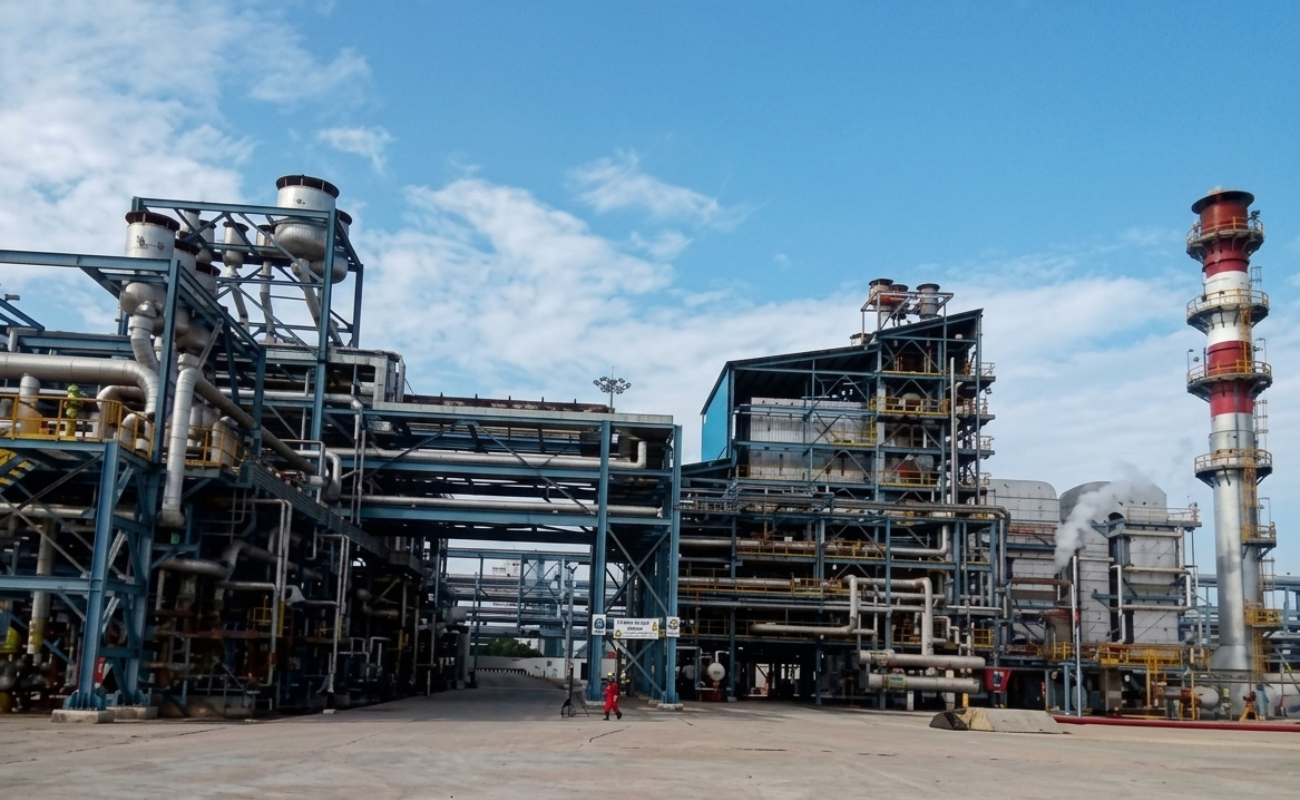

Single-Drum High Capacity Radiant Boilers
Delivers high-capacity, reliable steam for power and industrial process applications while ensuring optimal combustion and low emissions
Submit your enquiryTBWES single-drum high capacity radiant boilers are offered as fully modular plug-and-play units or as partially modular components.
Optimised for high-pressure, high-temperature steam, these boilers feature a large radiant furnace, optimised circulation, and superior heat transfer. A large furnace, leak-proof membrane walls, and steam-cooled superheater supports enhance efficiency and durability, minimising maintenance with low refractory usage. Their compact, modular design ensures easy installation and maintenance, while offering exceptional load response, fuel flexibility, and operational reliability, ideal for continuous, high-demand steam environments.
Technical data
Product capacity / performance range –
Capacity: Up to 500 TPH
Pressure: Up to 160 kg/cm2 (g)
Temperature: Up to 560ºC
Fuel type – Natural gas, hydrogen gas, biogas, syngas, blast furnace gas, coke oven gas, purge gas, light fuel oil, heavy fuel oil, residue oil, HSD, LDO, naphtha, waste gas etc.
Compliance or standards followed – ASME / IBR / TRCU / PED
Design –
Single-drum configuration simplifies the construction and maintenance of boilers
Available in full plug-and-play configurations or as partially assembled modules
Flexibility or customisation options – The product can be customised based on customer needs or scale
Other technical information – Radiant heat transfer: Heat is primarily transferred via radiation from the high-temperature furnace gases to the waterwalls, a process highly efficient due to the substantial temperature differential
