RealSteam™
Optimal heat transfer and equipment performance by accurately measuring steam dryness

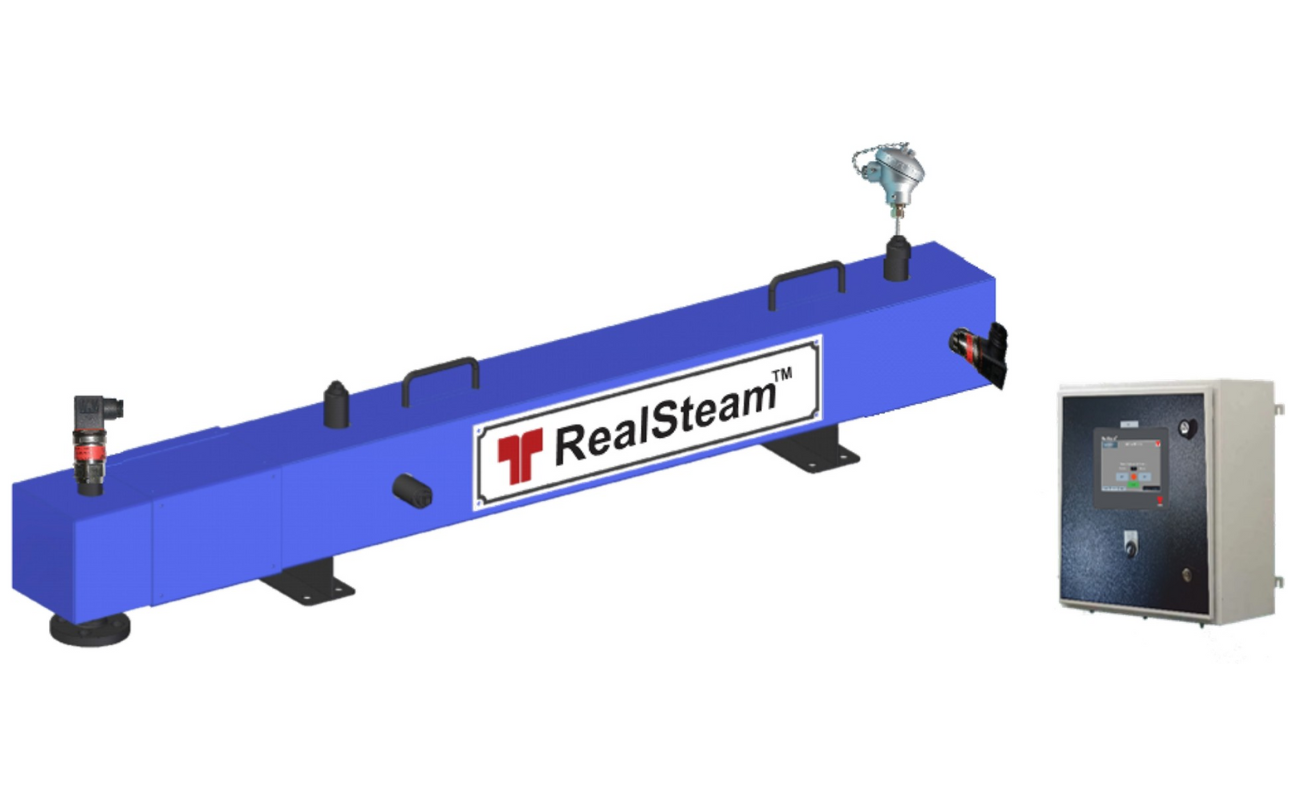

Submit your enquiryRealSteam™ is a reliable device designed to measure the steam dryness fraction. Accurately monitoring steam quality helps ensure that a sufficient heat flow is provided for heat transfer processes.
This prevents issues like reduced heat transfer efficiency, inconsistent product quality, premature equipment failures (valves, turbines), induced thermal stresses, water hammering, and erosion caused by low-quality steam.
RealSteam™ provides critical insights for optimising steam system performance and avoiding losses. While performance calculations for heat transfer equipment typically assume 100% dry steam; however, actual dryness being lower can significantly impact efficiency.
RealSteam™ helps to ensure steam quality meets specific requirements, avoid losses due to low-quality steam, and provides triggers for non-performance of parameters like boiler water carryover or high concentrations in boiler feedwater. Additionally, it helps check the effectiveness and health of pipeline ancillaries such as moisture separators, steam trap functionality, and insulation quality.
Key Industries/Applications:
- Industries: Power generation, petrochemical, chemical, oil and gas, tyre, steel, food and beverage, and manufacturing
- Applications: Steam boiler header outlet, process steam header, steam line to process equipment, critical process applications, direct steam injection in processes, saturated steam turbines inlet header
Technical data
- Design pressure: 17.5 kg/cm2(g)∗∗
- Operating pressure: 2 kg/cm2(g) to 17.5 kg/cm2(g)∗∗
- Design temperature: 210ºC **
- Boiler capacity: 1 TPH to 30 TPH
- Design standard (sensor assembly): Design calculation as per IBR
- Inspection and testing: Thermax quality assurance plan
- Certification: IBR certificate for sensor assembly, IITB approved, and certified by IIT, Bombay
- Overall dimensions of sensor assembly: 1320(L)×200(W)×247(H) (in mm)
- Weight: 20 kgs (approx)
- Scope of supply: Dryness measurement sensor meter, set of valves and instruments
- Utilities required:
- 230 V AC 1 Ph., 50 Hz supply
- Instrument air: 4−6 kg/cm2(g) for automated test valve (SOV)
- Battery limits:
- Steam connection: Inlet flange of RealSteam™ sensor assembly
- Air: At the inlet of AFR (air-fuel ratio)
- Power supply: At the control panel terminal box
- Sensing range: RealSteam™ has a specific sensing range indicated by its performance curve
