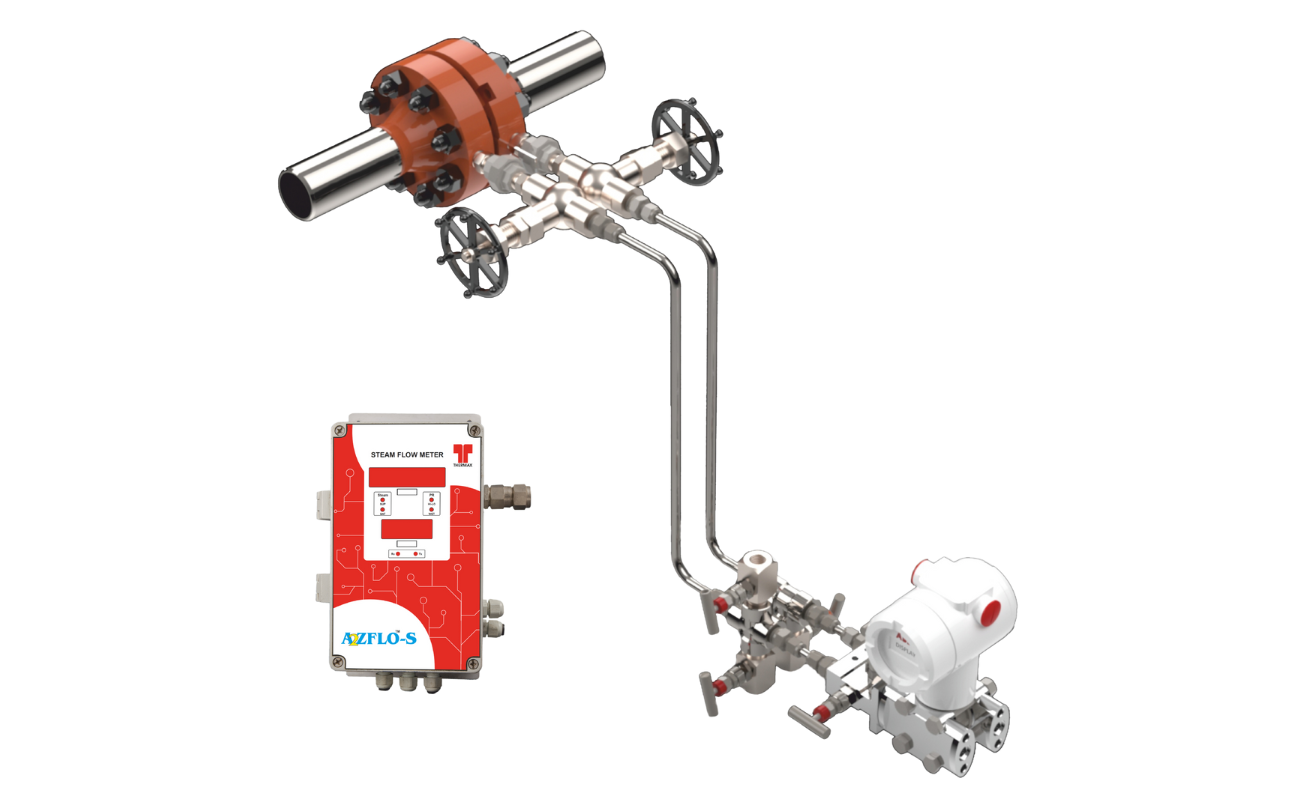

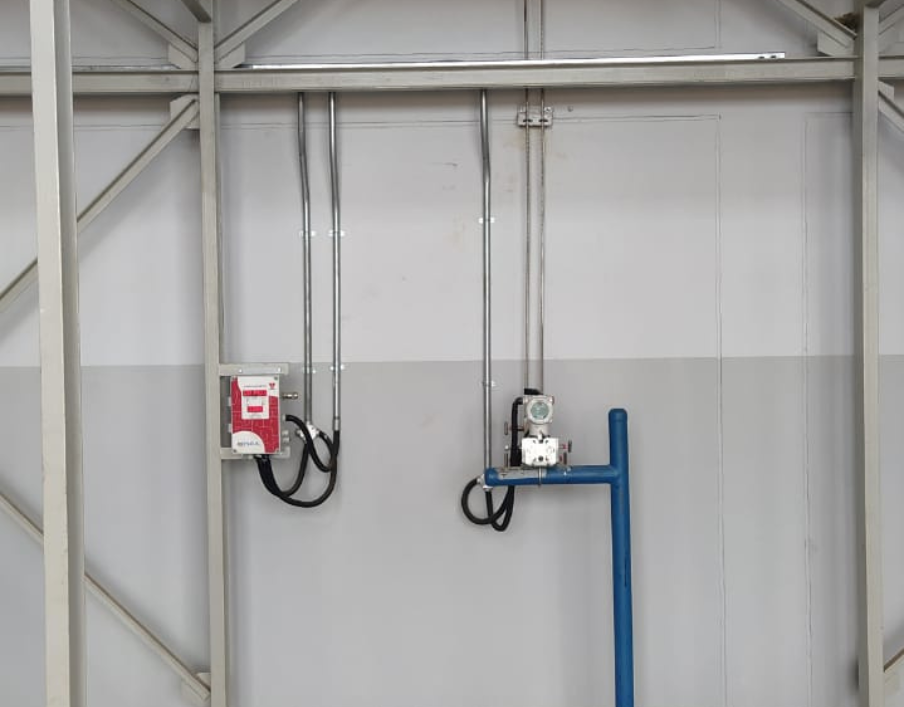

A2Zflo-S – Steam Flow Meter
Accurate steam flow measurement for optimised energy management and cost control
Submit your enquirySelect an option
A Steam Flow Meter provides precise and reliable measurement of steam consumption within industrial processes. Accurate steam flow data is critical for effective energy management, cost allocation, boiler efficiency monitoring, and optimising process control.
Steam flow meters enable industries to quantify exactly how much steam is being consumed by different departments, processes, or equipment. This data empowers facility managers to identify areas of excessive consumption, detect leaks, optimise process parameters, and implement energy-saving initiatives. Depending on the application and steam conditions (saturated or superheated), various technologies like Vortex or Orifice Plate flow meters are employed, each offering specific advantages in terms of accuracy, turndown ratio, and pressure drop.
Key Industries/Applications:
- Industries: Manufacturing (textiles, paper, food and beverage), power, chemical and petrochemical, pharmaceutical, and HVAC systems in large commercial buildings
- Applications: Measuring steam consumption to individual departments or machines, optimising boiler efficiency, billing/cost allocation for steam users, energy audits, performance monitoring of steam-consuming equipment, and leak detection in steam distribution networks
Technical data
- Product capacity / performance range: Available in various sizes and flow ranges to suit different pipe diameters and steam consumption rates. Accuracy typically ranges from ±1% to ±2% of reading. It can handle a wide range of steam pressures and temperatures
- Fuel type or energy sources: Measures the flow of steam generated from various fuel sources
- Compliance: ISO, ASME standards
- Design and customisation:
- Technologies: Vortex (suitable for saturated and superheated steam, good turndown), Orifice Plate (cost-effective, widely used, but with higher pressure drop), Turbine (less common for steam due to wear)
- Outputs: Analogue outputs (4-20 mA), digital outputs (pulse, Modbus, HART (highway addressable remote transducer) for integration with DCS (distributed control systems), PLC (programmable logic controllers), or SCADA (supervisory control and data acquisition) systems
- Compensated measurement: Many steam flow meters offer integrated temperature and pressure compensation to provide accurate mass flow readings, which is essential for steam due to its varying density
- Installation: Flanged, wafer, or threaded connections
Product features
Ease of installation and operational flexibility
Designed for simple inline installation, steam flow meters provide real-time data to support both immediate process adjustments and long-term energy planning
Fuel flexibility and performance output
Accurate steam measurement enables precise energy calculations, helping optimise fuel use and improve overall system performance
Innovative technology and smart controls
Integrated with microprocessor-based electronics with pressure and temperature compensation, enabling seamless integration with smart control and energy management systems
Structural strength, load handling and efficiency metrics
Robust construction materials (e.g., stainless steel) ensure durability in harsh steam environments, while delivering accurate efficiency metrics to identify and reduce steam losses
Environmental impact and cost savings
Precise steam monitoring reduces energy consumption, lowers emissions, and delivers cost savings through optimised fuel usage and proactive identification of inefficiencies.
