TherMeon-A
Compact, multi-fuel, cost-effective steam generation for MSMEs
Submit your enquirySelect an option

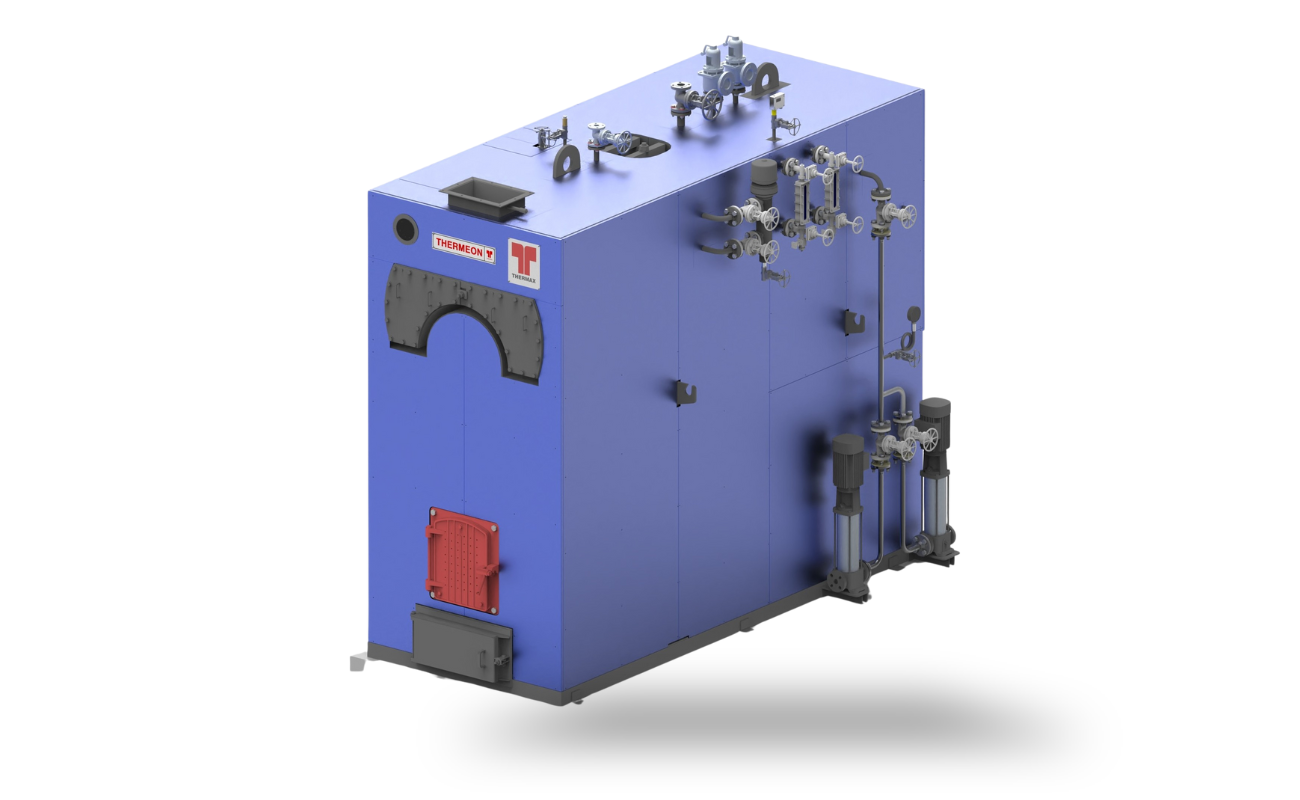

TherMeon-A is a compact, packaged, multi-fuel steam generator enabling reliable and cost-effective steam generation for MSMEs.
It is an advanced, fully packaged steam generator designed to deliver reliable and cost-effective steam for MSMEs. Its dual furnace configuration enhances combustion efficiency with a larger effective furnace volume, while high water hold-up enables faster response and quick steam generation. Built for multi-fuel operation, Thermeon-A reduces fuel costs while ensuring compactness, operational reliability, and reliable performance.
Technical data
- Operating range: Steam output: 0.3 TPH to 2 TPH
- Design pressure: 7 kg/cm²(g) and 10.54 kg/cm²(g)
- Fuel type or energy sources: Biomass briquettes, pellets, wood, cashew nut shells, and Indonesian coal
- Combustion technology: Stationary grate
Product features
Dual-furnace technology
Larger furnace volume enhances combustion stability and efficiency across a wide range of solid fuels
Multi-fuel flexibility
Compatible with biomass briquettes, pellets, wood, cashew nut shells, and Indonesian coal
Fast steam response
High water hold-up enables quick steam generation and stable performance during load changes
Compact and robust design
Durable triplex grate bars, quality components, and a space-saving footprint ensure long-term reliability
Ease of installation and compliance
Fully packaged, pre-assembled, and pre-insulated design compliant with IBR (Indian Boiler Regulations) & SIBR norms for user convenience
