Bi-Drum (PowerMax)
High-pressure steam generation for dependable process heat and cogeneration applications
Submit your enquirySelect an option

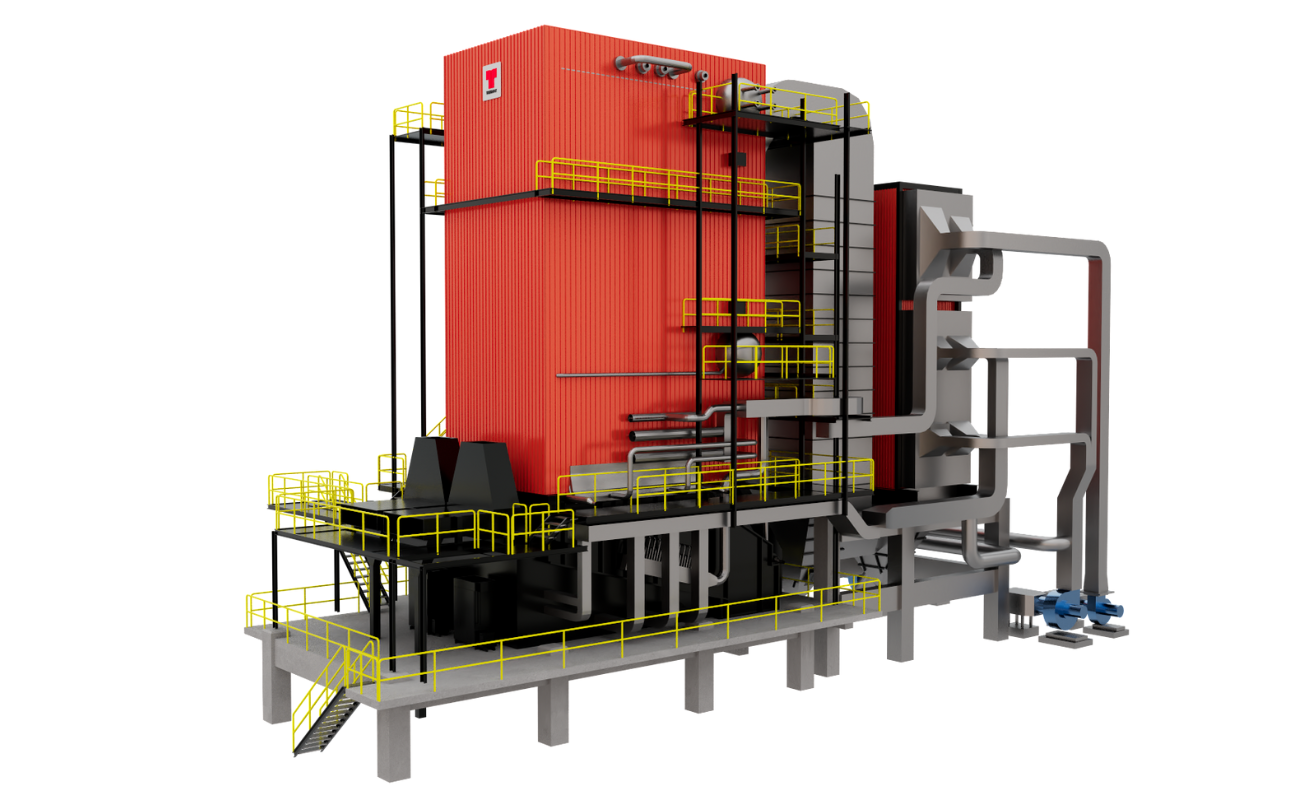

Bi-Drum (PowerMax) is a robust bi-drum water tube boiler delivering high-pressure steam for process heat and cogeneration.
It is engineered for continuous, high-pressure steam generation for high-capacity process heat and cogeneration applications. Its membrane water wall furnace ensures stable operation even with choking fuels, while low water content enables quick response to load fluctuations. Designed for reliability and efficiency, it supports both biomass and fossil fuels across demanding industrial environments.
Technical data
- Operating range: Steam output: Up to 60 TPH
- Design pressure: Up to 80 kg/cm²(g)
- Fuel type or energy sources: Wide variety of green and conventional fuels, including biomass briquettes, wood chips, coal, and biomass pellets
- Combustion technology: Reciprocating grate, travelling grate, and fluidised bed
Product features
High-pressure steam capability
Water tube bi-drum design enables reliable generation of high-pressure steam
Robust furnace design
Membrane water wall furnace ensures uninterrupted operation with difficult and choking fuels
Flexible combustion options
Available with fluidised bed and reciprocating grate combustion technologies to suit fuel characteristics
Fuel flexibility
Supports biomass as well as conventional fossil fuels for wider application flexibility
Enhanced thermal performance
Large superheater provides a high degree of superheat for power and cogeneration needs
Integrated efficiency systems
Supplied with pollution control equipment, air preheater, and economiser to improve overall efficiency
Case Studies
Resources
Bi-Drum (PowerMax)

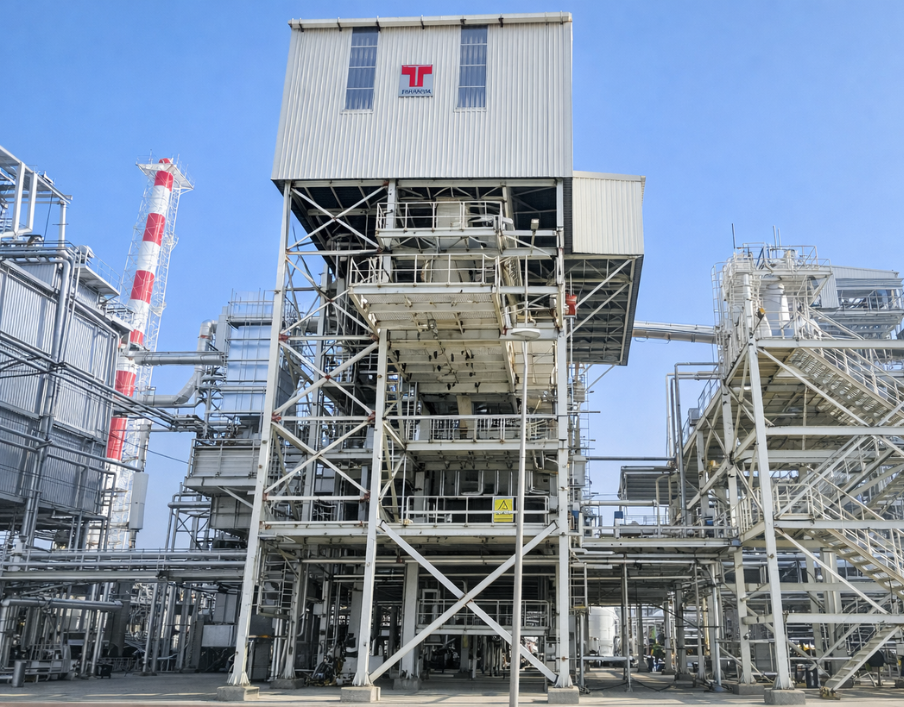

Thermax sets a record of installation and commissioning in 40 days with Pharmaceutical major in Indonesia
